CARRYTEC WALL MOUNT ADAPTOR

Carrytec wall stations

April 2016

WALL STATIONS CAN BE USED FOR CHARGING OR DATA TRANSFER

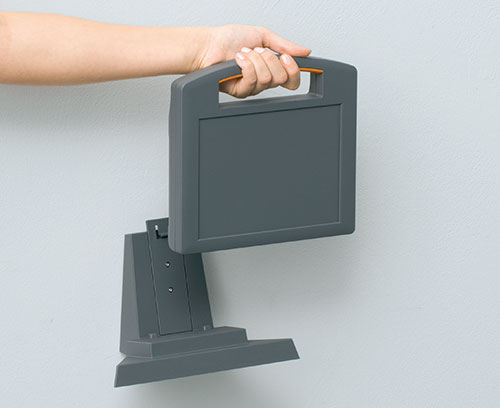

OKW’s largest CARRYTEC handheld instrument enclosures can now be wall mounted for charging and data transfer.

OKW has created a new adapter that allows the existing desktop station for CARRYTEC size L to be attached to a wall. CARRYTEC has been designed for a wide range of portable instrumentation applications. Its robust integrated handle makes it comfortable to carry. CARRYTEC can be mounted on desktops, tripods, rails, suspension arms – and now walls.

Like the rest of the CARRYTEC range, the new wall adapter for Station L is moulded in off white (RAL 9002) ABS (UL 94 HB) for indoor applications or in UV-stable lava ASA+PC-FR (UL 94 V-0) for outdoor use.

Each adapter is supplied with two self-tapping screws for attaching Station L.

CARRYTEC (IP 54 optional) was originally launched in three sizes: S (222 x 205 x 80 mm), M (270 x 247 x 91 mm) and L (348 x 303 x 117 mm). OKW recently added a slim version of size M for tablets (270 x 247 x 42 mm).

Each case’s integrated handle has a comfortable soft-touch insert. The handle is located above the centre of gravity for balanced carrying. It also doubles as a handy grab when the case is inverted for mounting on a suspension arm.

CARRYTEC’s top section features a generous recess for membrane keypads or product labels. Interfaces are protected by inset areas on the underside.

Accessories include the new wall adapters; IP 54 seals; 93 x 98 mm battery compartments (5 x AA); gold-plated contacts, contact mounting plates and 6-pin contacting kit; charging/data transfer stations for sizes S/M and L; station base plates; rail holding clamps, attachable protection bags for carrying probes, sensors and cables (sizes S and M); carry cases; PZ1 self-tapping screws (2.5 x 8 mm) and a Torx T10 screwdriver.

Customising options include custom colours, CNC machining; lacquering; digital, tampo and silk-screen printing; membrane keyboards; installation and assembly of accessories; display windows, adhesive foils, plastic and aluminium panels.

View range here >>
