NEW SLOPING FRONT PLASTIC ENCLOSURES

Protec enclosures

January 2019

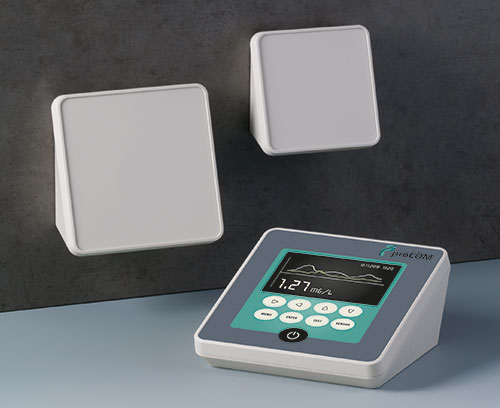

OKW has launched an all new square enclosure for desktop and indoor or outdoor wall-mounted electronics.

Advanced new PROTEC is designed for applications including surveillance, access and security control; data acquisition; building services and central control systems; IoT/IIoT; smart factory; Industry 4.0; gateways; data systems engineering; measurement and control; medical technology.

Smart modern PROTEC features soft contours for enhanced ergonomics and aesthetics.

Three versions are available: Version I has a deep recess at the rear for connectors, interfaces, switches and cables; Version II is similar but with a snap-on cover for the recess; Version III has a deep cover that provides extra space.

All three versions feature a front operating panel (inclined by 20° for added ergonomic comfort) with a recess for a membrane keypad. There is plenty of space for a touchscreen and PCBs can be fitted on three levels inside.

All the fixings are hidden on the underside. They are corrosion-proof stainless steel Torx screws to deter tampering. Rubber feet ensure the enclosures do not slip during desktop use.

Each version of PROTEC is available in three sizes – resulting in nine sizes from 140 x 140 x 76 mm to 220 x 243 x 108 mm. The cases are moulded from tough and UV-stable ASA+PC-FR in off-white (RAL 9002) as standard. All models can be sealed to IP 65 with the optional sealing kits. Prices start at £21.

Accessories include wall suspension elements that are concealed and flush-mounting. Also available are IP 65 seals, self-tapping screws and a Torx T10 screwdriver.

OKW can supply PROTEC fully customised. Services include: CNC machining; custom colours and finishes (lacquering); digital, screen or tampo printing of legends and logos; photo quality decor foils; EMC shielding; installation and assembly.

View range here >>
