OKW CONNECT Wired Electronic Enclosures Now In Black

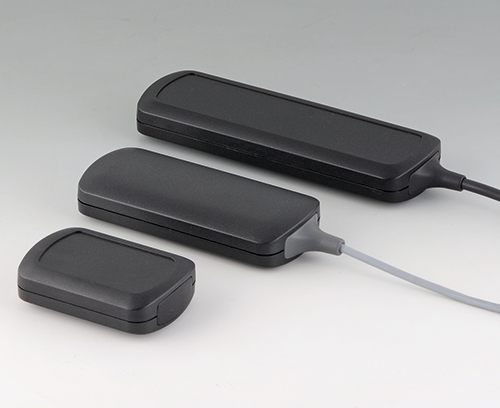

Connect wired enclosures in black

August 2019

OKW’s CONNECT enclosures for wired electronics are now available as standard in black (RAL 9005) as well as the existing off-white (RAL 9002).

CONNECT can be connected to a cable, sit between cables or act as a node for USB connectors. Applications include medical and wellness, data systems engineering, machine control, robotics, IoT/IIoT, measuring and control.

CONNECT can hang suspended from a cable, be handheld or lay flat on a desk. Each enclosure comprises two sections: one flat with a recessed panel to accommodate a membrane keypad or product label; the other convex to make it comfortable to hold. Rounded corners enhance the ergonomics.

Smart snap-together construction means that no fixing screws are required – giving users a choice of which side to make the top. Benefits also include faster installation times and superior aesthetics.

The enclosures have open apertures at each end. They can be fitted with accessory end panels (which can be machined for USB connectors, LEDs) or soft-touch SEBS/TPE cable glands with integrated strain relief. There are four PCB fixing pillars inside the flattened case shell.

Three sizes of CONNECT are available as standard: 54 mm x 22 mm in lengths of either 76, 116 or 156 mm. Although the enclosures are designed for indoor use, they are moulded from UV-stable ASA+PC-FR (UL 94 V-0).

Accessories include holding clamps for bed rails up to Ø 32 mm; end panels; cable glands for a range of cable sizes.

Customisation services include CNC machining; custom colours; lacquering; printing of legends and logos; photo quality decor foils; EMC shielding; installation and assembly.

CONNECT Technical Video

View CONNECT range >>
