New Wall Holders For CONNECT Wired Enclosures

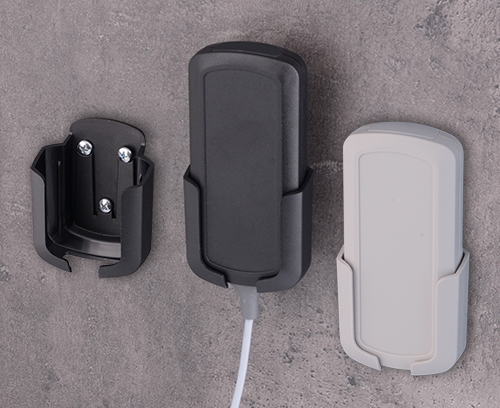

Wall holder for CONNECT enclosures

March 2020

OKW has added a new wall holder to its CONNECT range of wired enclosures – enabling devices to be stored safely and securely when not in use.

The new holder is perfect when CONNECT is specified as a wired (or wireless) remote control for applications such as medical and wellness electronics. Versatile CONNECT is also ideal for IoT/IIoT, robotics, machine controllers, network technology, building services systems, safety engineering, measurement and control.

OKW’s new holder will accommodate all three sizes of CONNECT (76 x 54 x 22 mm, 116 x 54 x 22 mm, 156 x 54 x 22 mm) and features a large recess for plug-in connections. It can be mounted on walls, machines or other flat surfaces using three screws.

The holder is moulded from robust and UV-stable ASA+PC-FR (UL 94 V-0) in two standard colours: off-white (RAL 9002) and black (RAL 9005).

Other accessories for CONNECT include holding clamps for rails; cable gland kits with kink protection and integrated strain relief; enclosure end parts and self-tapping screws for PCBs.

OKW can supply CONNECT fully customised on request. Services include CNC machining, lacquering, digital/screen/tampo printing or laser marking of legends and logos, decor foils, EMC shielding, installation and assembly of accessories.
