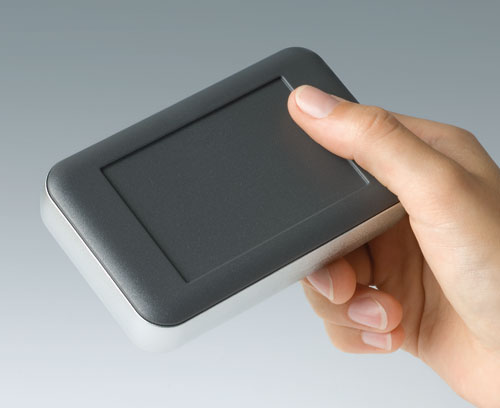

Soft-Case

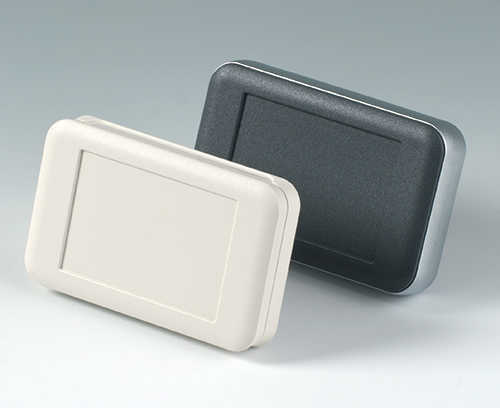

Wide-format handheld enclosures

SOFT-CASE plastic enclosures convince design engineers, because they correspond with today’s design and technology needs.

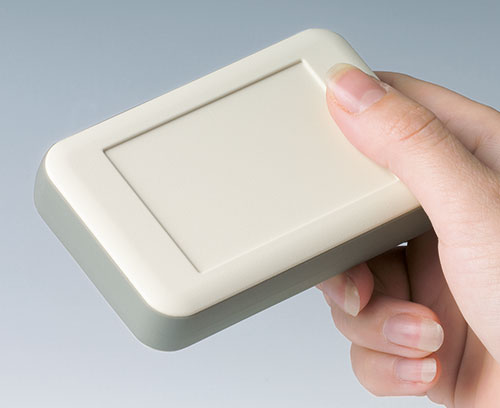

  • handy design with soft contours for a pleasant touch sensation

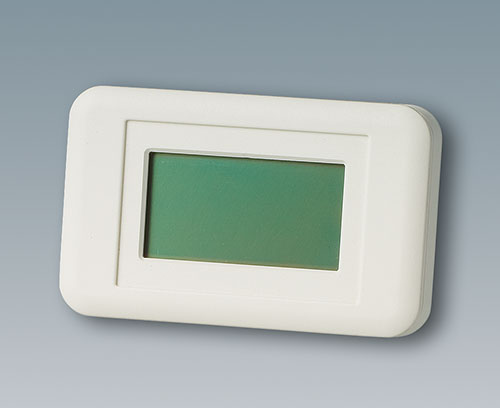

  • unique “wide-format” offers a generous interface area as well as sufficient room for larger displays, while also ensuring user comfort

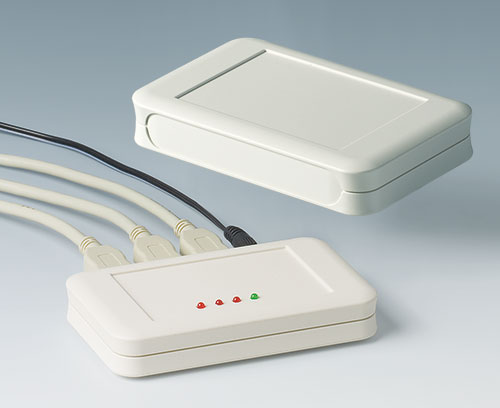

  • raised connector mounting panel on the wide edge to accommodate more connections

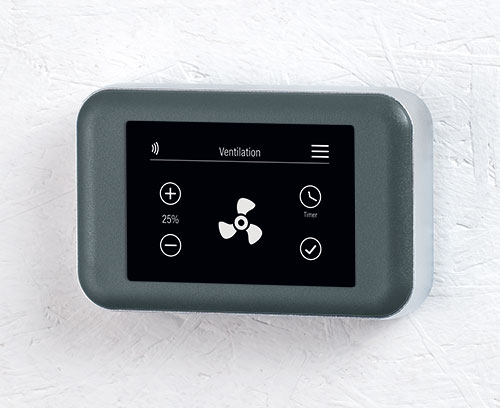

  • universal use for handheld, desktop and wall mount applications

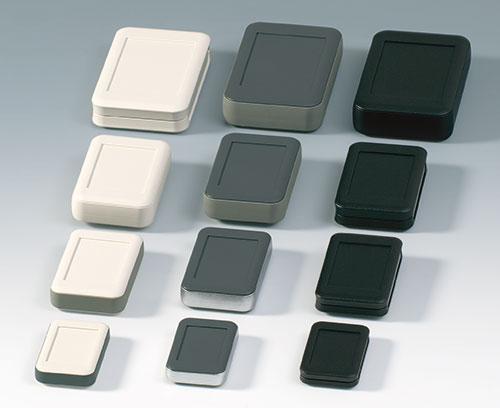

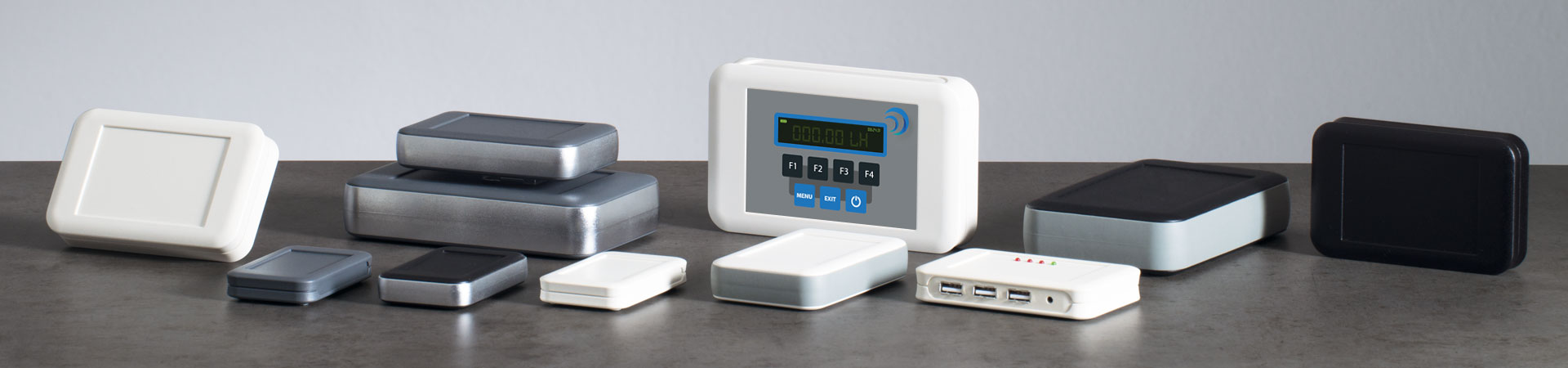

  • four sizes

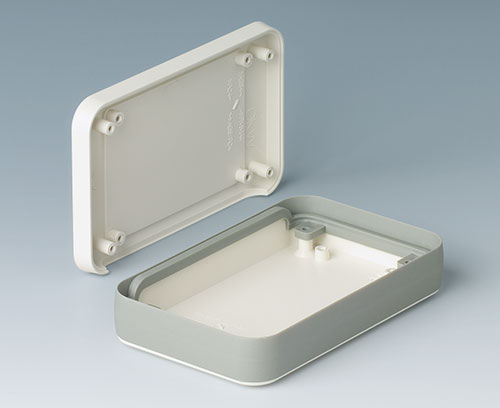

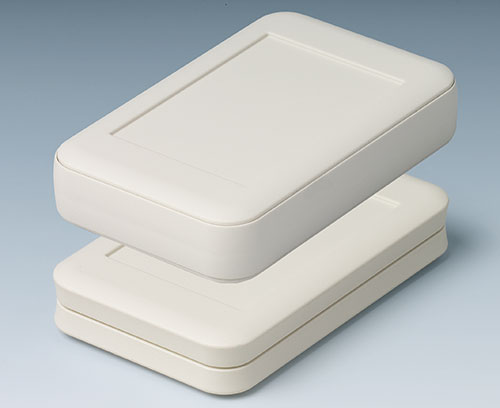

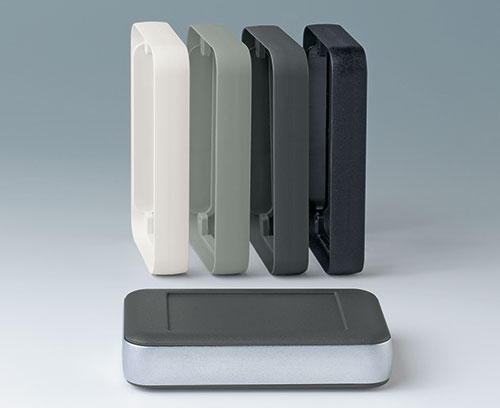

  • optional intermediate rings provide more installation height. Different versions: ABS rings in case colour or chromated, soft TPE ring
  • with soft TPE ring protection class IP 54 possible (enclosure versions without battery compartment in ABS or PMMA)

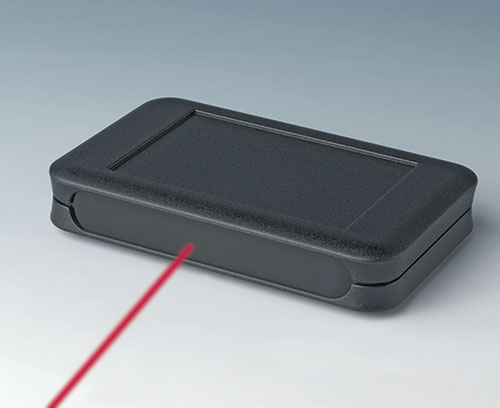

  • two materials: ABS (UL 94 HB) or PMMA infra-red light-permeable (UL 94 HB)

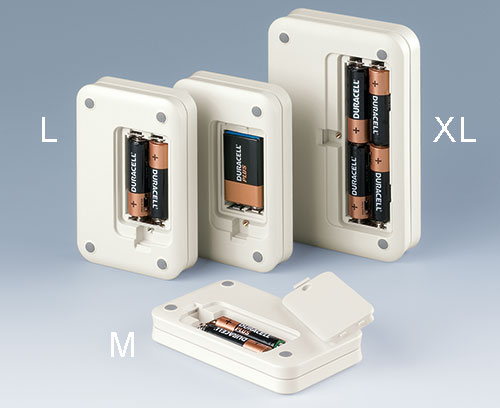

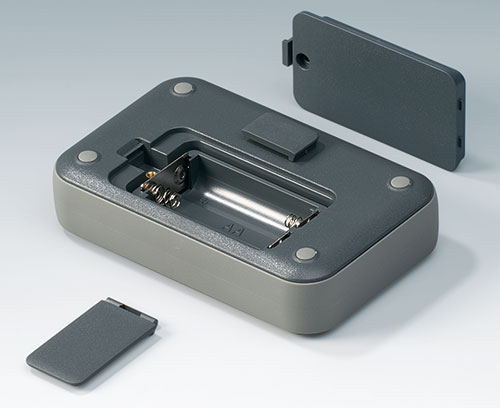

  • without/with battery compartment for 2 x AAA, 2 x AA, 4 x AA or 1 x 9 V;
  • clip-on battery compartment lid can be screw fixed

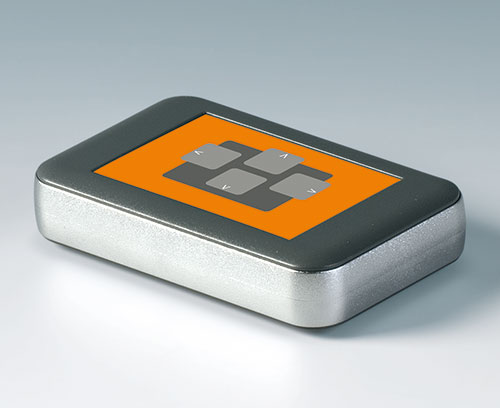

  • recessed operating area for protecting the membrane keypad or decorative foil/label

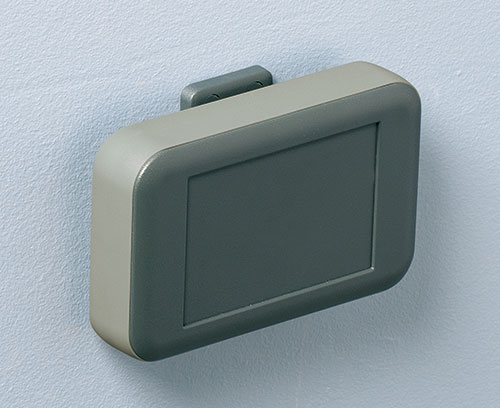

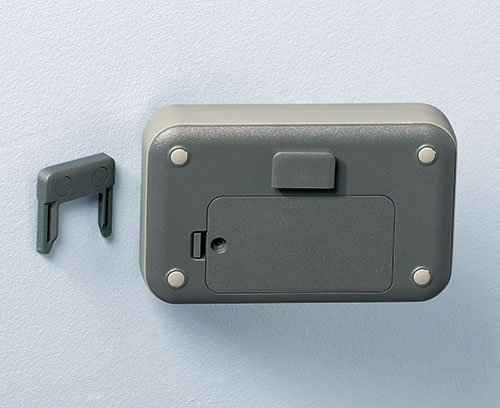

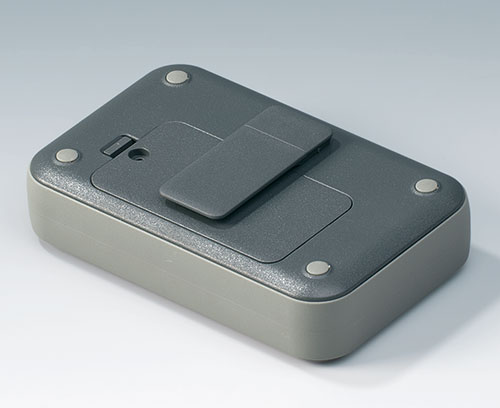

  • combi-clip serves as a belt clip and/or wall suspension element (accessory)

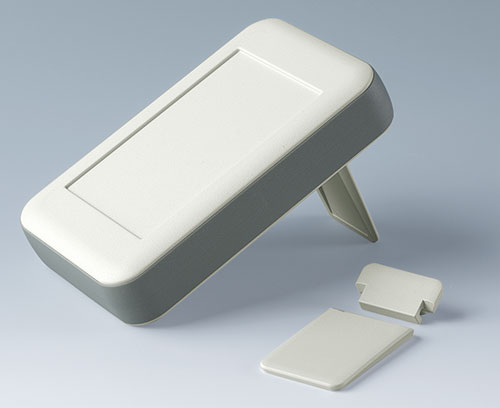

  • tilt foot bar for ergonomic canting on a desk
  • internal fastening pillars for PCBs
  • Application Examples

Application fields

  • All types of remote control devices, wireless or with cable
  • Measurement and control engineering
  • Digital control technology
  • Medical and laboratory technology
  • Peripheral and interface equipment
  • Communications technology
  • IoT/IIoT
  • Environmental engineering
  • Energy management
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

AltText

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
product added to your list
AltText

A9100001

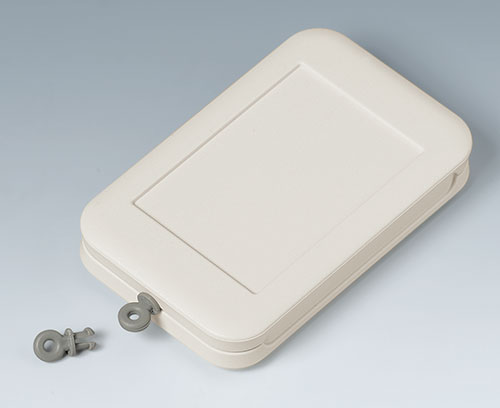

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Close

A9100001

Ring eyelet
product added to your list
PA 6
volcano
AltText

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your list
PA 6
volcano
AltText

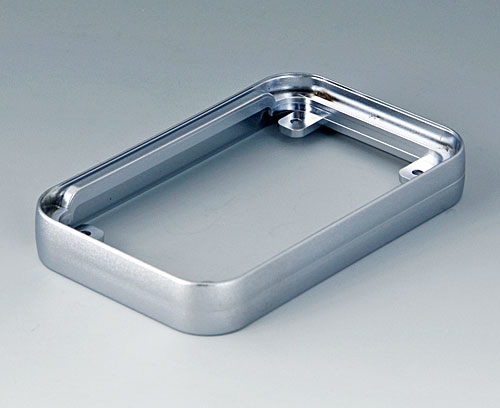

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9150011

Intermediate ring S
product added to your list
ABS (UL 94 HB)
matt chromed
54x85x12mm
AltText

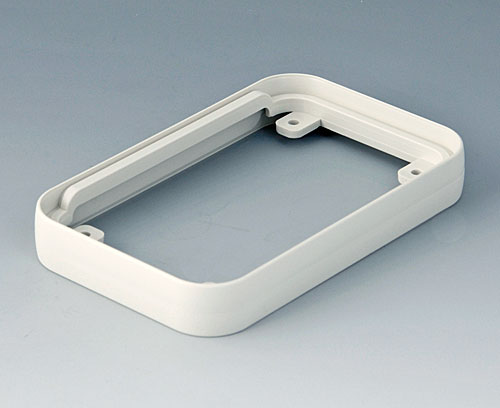

A9150017

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150017

Intermediate ring S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
54x85x12mm
AltText

A9150018

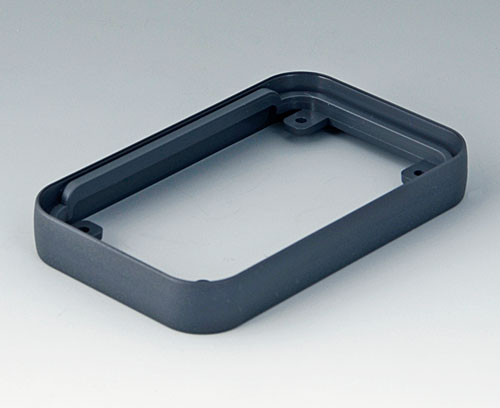

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150018

Intermediate ring S
product added to your list
ABS (UL 94 HB)
lava
54x85x12mm
AltText

A9150118

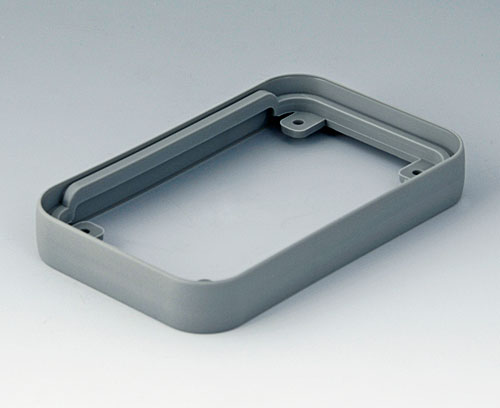

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9150118

Intermediate protection ring S
product added to your list
SEBS (TPE)
volcano
54x85x12mm
AltText

A9150219

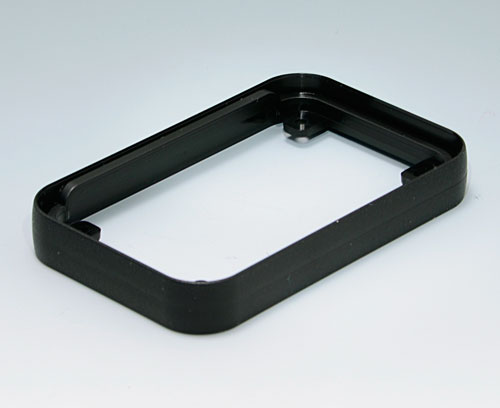

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9150219

Intermediate ring S
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
54x85x12mm
AltText

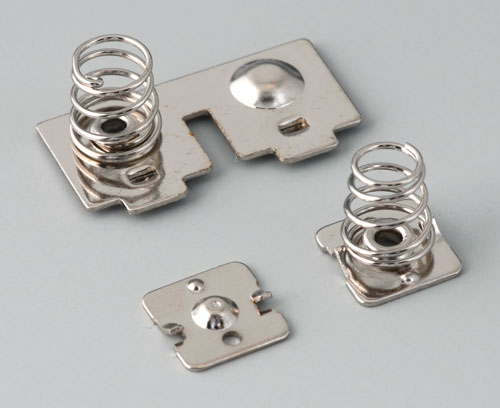

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9151010

Set of battery clips, 2 x AAA
product added to your list
Steel
nickel-plated
AltText

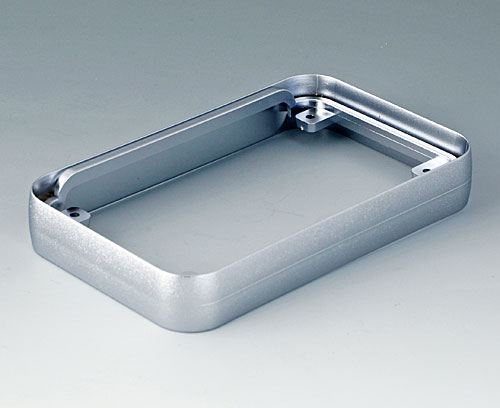

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9151011

Intermediate ring M
product added to your list
ABS (UL 94 HB)
matt chromed
68x108x16mm
AltText

A9151017

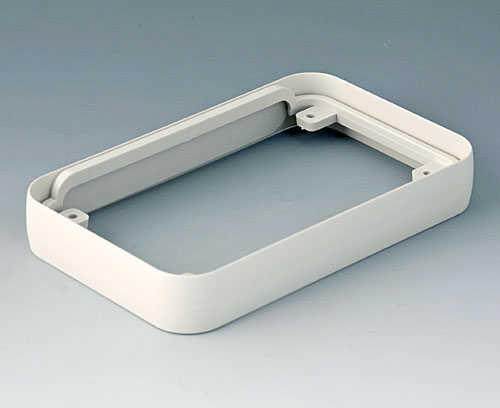

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151017

Intermediate ring M
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm
AltText

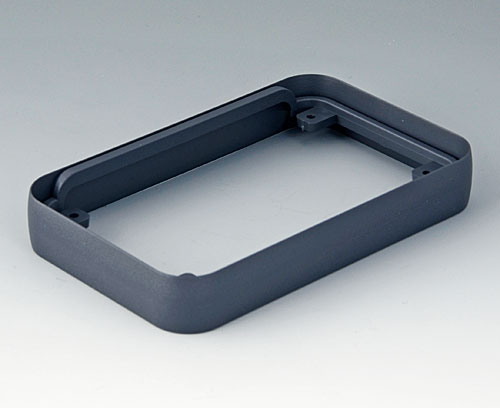

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151018

Intermediate ring M
product added to your list
ABS (UL 94 HB)
lava
68x108x16mm
AltText

A9151118

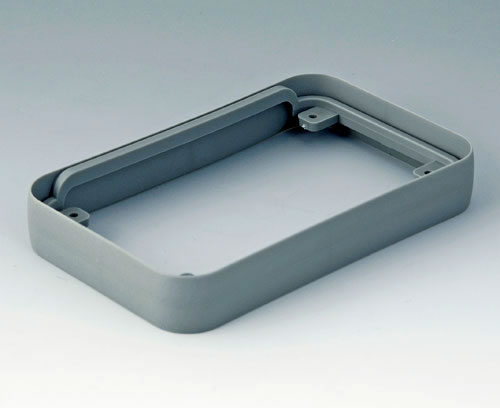

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9151118

Intermediate protection ring M
product added to your list
SEBS (TPE)
volcano
68x108x16mm
AltText

A9151219

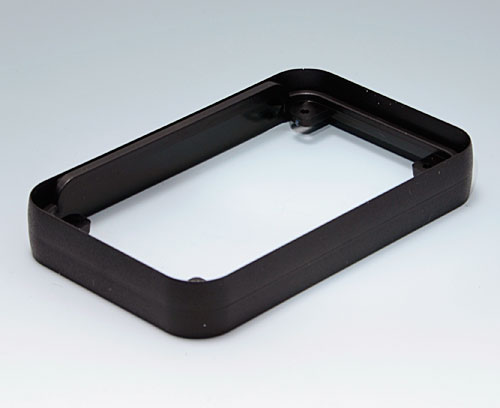

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9151219

Intermediate ring M
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm
AltText

A9152010

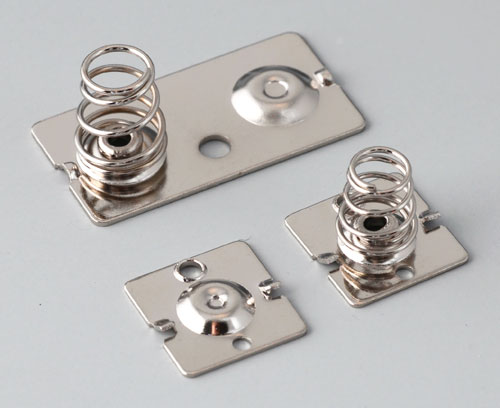

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Close

A9152010

Set of battery clips, 2/4 x AA
product added to your list
Steel
nickel-plated
AltText

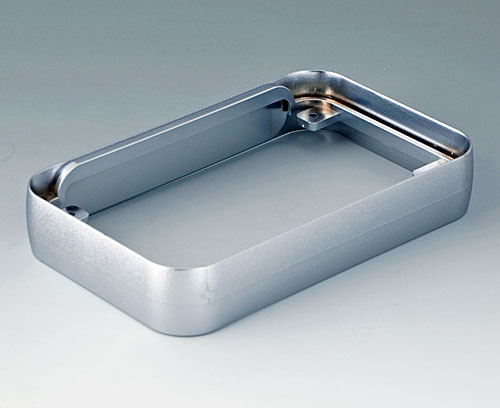

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Close

A9152011

Intermediate ring L
product added to your list
ABS (UL 94 HB)
matt chromed
76x120x21mm
AltText

A9152017

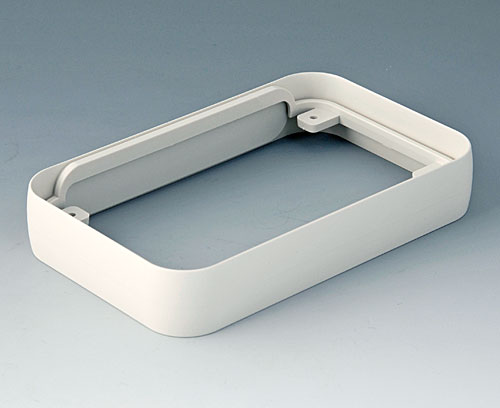

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152017

Intermediate ring L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
AltText

A9152018

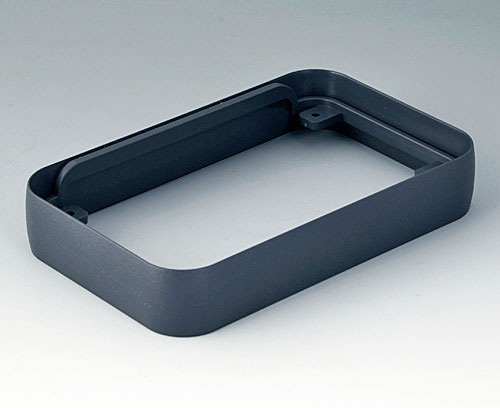

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152018

Intermediate ring L
product added to your list
ABS (UL 94 HB)
lava
76x120x21mm
AltText

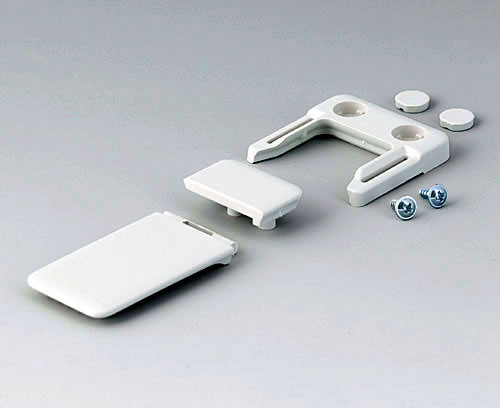

A9152047

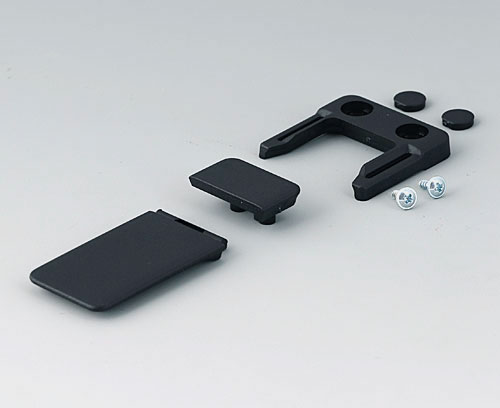

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152047

Combi-Clip
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
45x27mm
AltText

A9152048

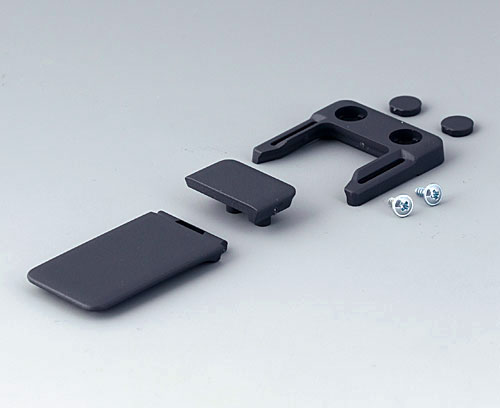

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152048

Combi-Clip
product added to your list
ABS (UL 94 HB)
lava
45x27mm
AltText

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Close

A9152049

Combi-Clip
product added to your list
ABS (UL 94 HB)
black RAL 9005
45x27mm
AltText

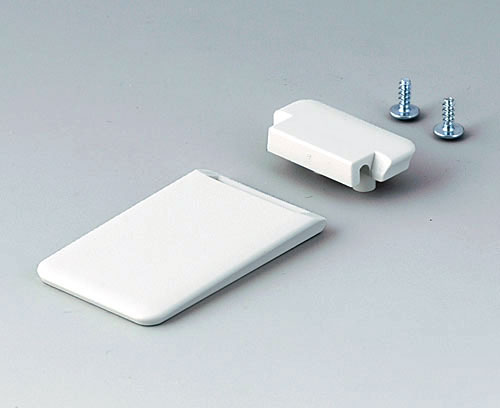

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152057

Tilt foot bar
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9152058

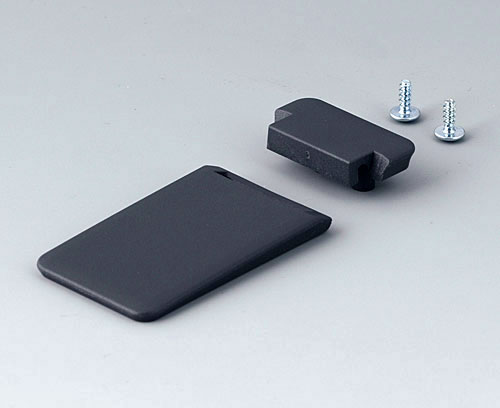

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152058

Tilt foot bar
product added to your list
ABS (UL 94 HB)
lava
AltText

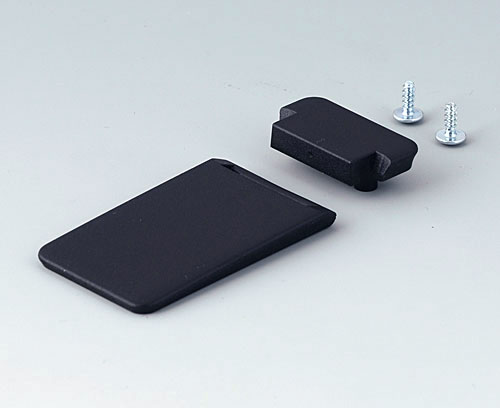

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Close

A9152059

Tilt foot bar
product added to your list
ABS (UL 94 HB)
black RAL 9005
AltText

A9152118

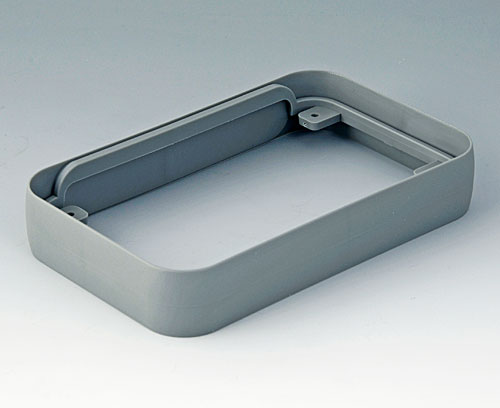

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Close

A9152118

Intermediate protection ring L
product added to your list
SEBS (TPE)
volcano
76x120x21mm
AltText

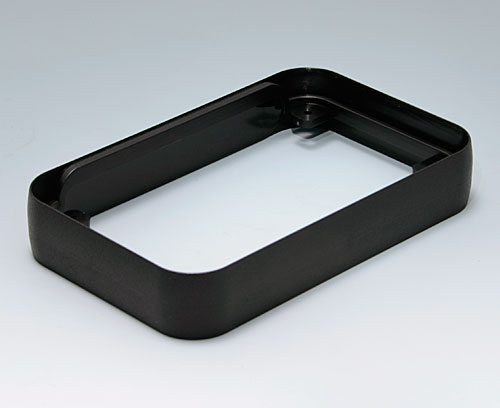

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Close

A9152219

Intermediate ring L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm
AltText

A9153011

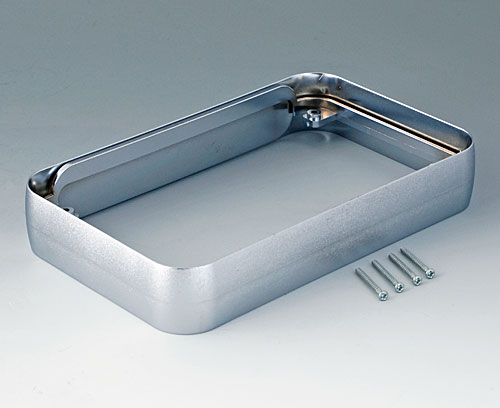

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153011

Intermediate ring XL
product added to your list
ABS (UL 94 HB)
matt chromed
96x154x26mm
AltText

A9153017

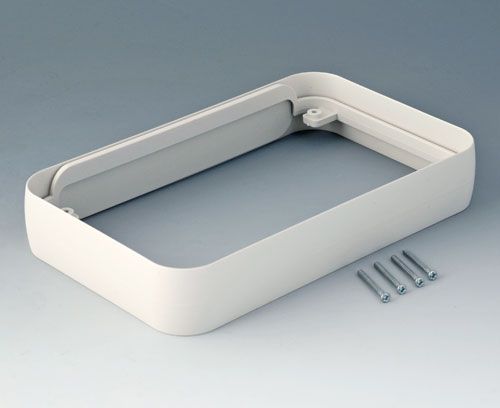

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153017

Intermediate ring XL
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm
AltText

A9153018

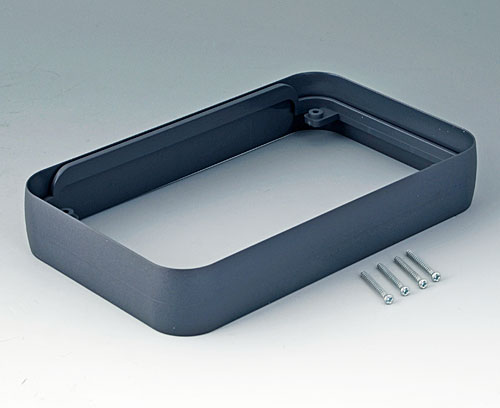

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153018

Intermediate ring XL
product added to your list
ABS (UL 94 HB)
lava
96x154x26mm
AltText

A9153118

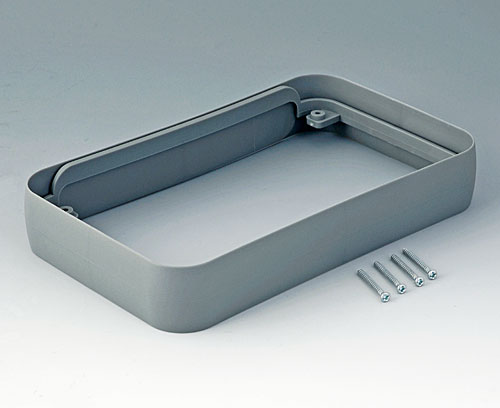

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153118

Intermediate ring XL
product added to your list
SEBS (TPE)
volcano
96x154x26mm
AltText

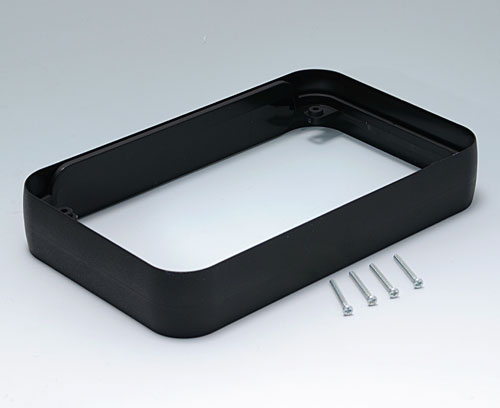

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Close

A9153219

Intermediate ring XL
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm
AltText

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V
product added to your list
Steel
tin-plated
AltText

B9106128

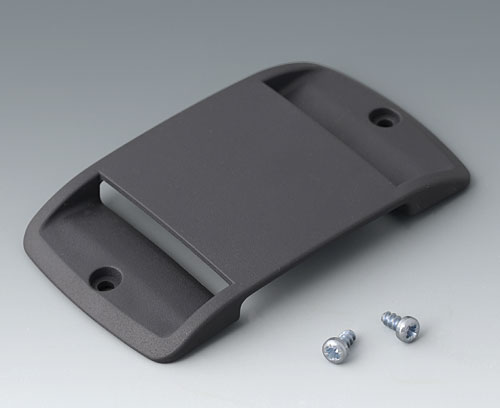

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

Close

B9106128

Strap eyelet
product added to your list
ABS (UL 94 HB)
lava

Customising options for Soft-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
