DATEC-COMPACT IN TWO NEWS SIZES


Datec-Compact IP65 handheld enclosures

October 2014

ERGONOMIC IP 65 ENCLOSURES FOR INDOOR AND OUTDOOR USE

All three sizes can be specified with or without gold-plated integrated contacts (<15 A, 1-pole) which provide an all-in solution for charging and data transfer.

Versions with battery compartments – 3 x 1.5 V AAA (size S) or 2 x 1.5 V AA (sizes M and L) – provide slots for SD cards and USB connectors.

Highly robust DATEC-COMPACT is rated to IP 65, manufactured from UV-stable ASA+PC-FR (UL 94 V-0) and assembled using tamper-proof Torx T10 screws.

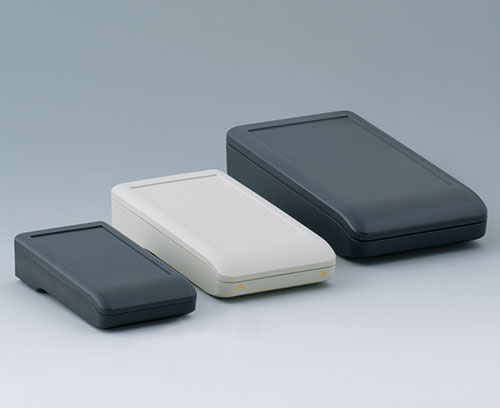

Sizes for DATEC-COMPACT are S 136 mm x 74 mm x 32 mm, M 172 mm x 92 mm x 39 mm and L 206 mm x 110 mm x 47 mm.Standard colours are Off-white (RAL 9002) and Lava Grey. Special colours are available on request.

Accessories include desk stations and wall holders – both of which can be specified either with or without gold-plated spring contacts (<15 A, 1-pole). Nickel-plated battery clips are also available, along with spare contacts, non-slip pads (ø 6.5 mm), self-tapping screws (ø 2.5 x 6 mm PZ1) for mounting PCBs and a Torx T10 screwdriver.

Customising services include CNC milling and drilling, printing or engraving of legends and logos, special finishes, keypads and assembly.

View range here >>
