SMART-CONTROL – OKW’s First Enclosure For Corners

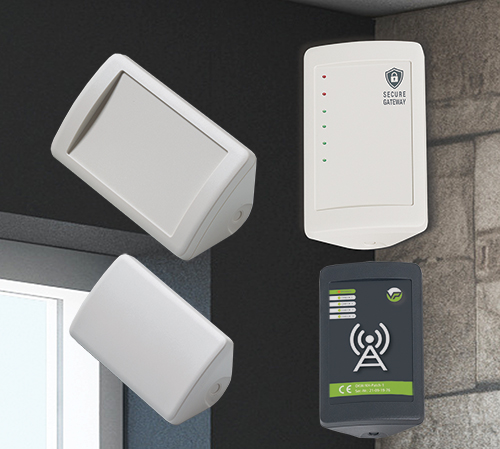

SMART-CONTROL corner enclosures

October 2019

OKW has launched SMART-CONTROL – its first plastic electronic enclosure designed especially for room corners. It can be mounted on ceilings and walls using the suspension element, or on a table-top using the desktop stand.

Wedge-shaped SMART-CONTROL is perfect for a wide range of applications including security and monitoring, environmental technology, IoT/IIoT, gateways, measurement and control, sensors, control electronics, medical and laboratory technology.

Ideally, the enclosure should be mounted as close to the ceiling as possible; this high position is ideal for wide-area room monitoring, saves space and protects the equipment from damage or tampering.

Two versions are available, offering either a convex front or a recessed operating area for a membrane keypad. No fixing screws are visible from the front; all the stainless steel tamperproof Torx screws are at the rear. PCB mounting pillars are moulded in both the top and bottom sections.

SMART-CONTROL is available in two sizes: S (142 x 81 x 46 mm) and M (173 x 101 x 59 mm). The enclosures are moulded from strong, UV stable ASA+PC-FR (UL 94 V-0). The standard colour is off-white (RAL 9002). Prices start at £19.

Options and accessories for this new range include IP 55 seals, a wall suspension element (for 90° inside corners or flat surfaces), an ergonomic desktop stand (viewing angle 45°), Torx T8 self-tapping screws and a Torx T8 screwdriver.

SMART-CONTROL is available in custom colours. Other customising options include CNC machining, lacquering, printing or laser marking of legends and logos, decor foils, EMC shielding, installation and assembly.

View SMART-CONTROL range >>
