COMPARE OKW POCKET ENCLOSURES

Blog - November 2016

Compare the features of our pocket enclosures to identify the best product to suit your application...

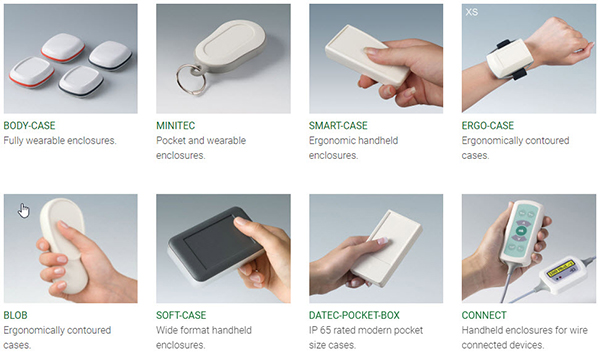

Compare Pocket Enclosures

Compare features:

Range IP Sizes Materials Colours Options Batteries Price*
Body-Case IP65,
IP67
55x46x17 ASA (UV)
TPE
White Smooth top
Recessed top
Round cells
Button cells
(on PCB)
£8.42
Minitec IP41 51x32x13
70x44x16
84x53x19
52x32x15
PMMA (IR)
ABS
SEBS
Black
Lava grey
Off-white
Smooth top
Recessed top
Round cells
Button cells
(on PCB)
£4.25
Smart-Case IP40
IP65
58x35x19
96x47x24
140x63x30
168x74x35
ABS
PMMA (IR)
Off-white
Black
Integrated cable glands
Desk station
AAA
AA
9V
12V round
£6.32
Ergo-Case IP42 82x56x24 ABS
TPE
Off-white
Black
Eyelets for lanyard,
wrist strap or belt
Round cells
Button cells
(on PCB)
£12.43
Blob IP54 130x60x30 ABS Off-white
Lava grey
Cable glands AAA
AA

Button cells
(on PCB)
£12.02
Soft-Case IP40
IP54
82x51x14
105x65x19
117x73x24
150x92x28
ABS
PMMA (IR)
Biograde
Off-white
lava grey
Black
Batt. Compartments
Belt/wall clip
Intermediate rings
AAA
AA
9V
£8.68
Datec-Pocket-Box IP40
IP54
85x46x16
105x58x18
120x65x22
ABS
PMMA (IR)
Off-white
Black
Belt/pocket clip N
AAA
AA
9V
£9.30
Connect IP40 76x54x22
116x54x22
156x54x22
ASA-PC-FR
(UV)
Off-white Integrated cable glands
holding clamp
Round cells
Button cells
(on PCB)
£5.25


Price* - Starting price (December 2016) Please call for an updated quotation.

BODY-CASE – perfect for pockets! OKW’s first wearable enclosures designed to fit a standard 18 mm watchstrap. Can be carried loose, worn on the arm, around the neck or clipped to clothing.
Watch the video and view the range >>

MINITEC – award-winning design. Two shapes (each in three sizes) plus a wide range of colours give you lots of standard permutations. Choose from ABS or IR-permeable PMMA (for remote control applications).
View the range >>

SMART-CASE – ergonomic design for maximum user comfort. Rated up to IP 65. Wide choice of battery options (pre-fitted cable gland also available for wired applications). Accessories include a desktop station for changing/data transfer.
View the range >>

ERGO-CASE XS – versatile enclosures with choice of soft touch TPE eyelets for pockets, wrist straps, belts, lanyards, hand straps and carrying straps. Top recess for membrane keypads. Flat end panel for connectors, switches.
View the range >>

BLOB (UNIT) – another award-winner! Its amorphous ‘exclamation mark’ shape guides users’ fingers to the controls. Designed for single-handed use. Comfortable but rugged. IP 54 protection optional.
Watch the video.
View the range >>

SOFT-CASE – wide format cases for larger displays. Ideal for ‘landscape’ viewing. Intermediate rings offer extra space. Available in ABS, PMMA and CO2 neutral Biograde. Accessories include belt/wall Combi-Clip, ring and strap eyelets, tilt foot bars.
View the range >>

DATEC-POCKET-BOX – thin profile for comfort. Available unsealed or with pre-fitted IP 54 gaskets. Flat surfaces allow easy machining (or we can customise them for you). Accommodates N, AA, AAA or 9V cells. Choose from ABS or PMMA.
View the range >>

CONNECT (WITH END PANELS) – snap-together assembly (no screws needed). Twin-fronted design offers choice of recessed or curved top. Moulded from ASA+PC-FR for UV stability. Choose from three lengths.
Watch the video, view the range >>

View all handheld enclosures >>

Get Expert Advice On Enclosures

Contact OKW – the electronic enclosures specialist – for expert technical advice on the best housings for your PCBs.

Contact our team and discover how easy it is to specify the perfect enclosures for your electronics.
